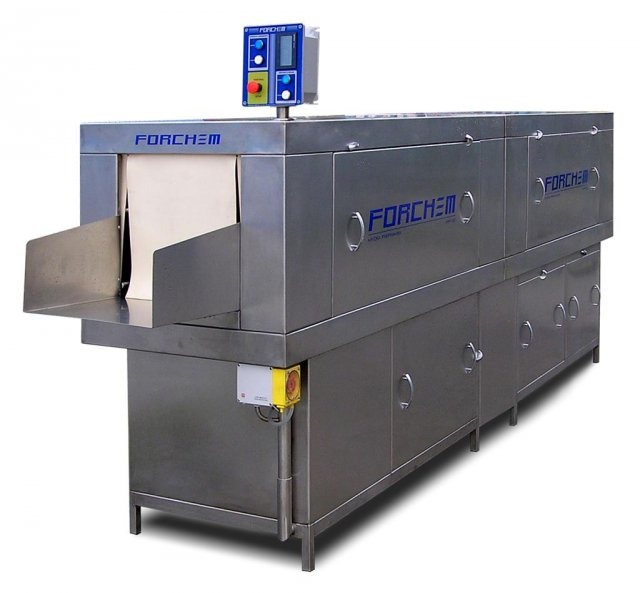

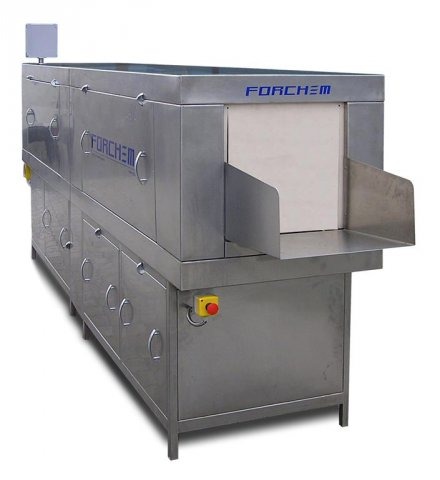

FORCHEM MP 150 box washer

FORCHEM MP 150 box washer

Box washer FORCHEM MP 150 is designed for cleaning dirty boxes used in butcher, baking and the other food factories. The quarantee of the cleaning quality are the high - pressure pump and a lot of nozzles situated in the cleaning tunnel. The whole box washer is made from stainless steel. The number of zones, power of the washer and the measuremets of the cleaning tunnel can be adaptted according to the actual needs of the customer. Easy service, not difficult maintenance and the long durability of our equipments are for us the important point of the customer satisfaction.



The equipment involves an electric heating and is composed from the main washing module and rinsing module. It is capable of washing the EURO - crates 600x400. The objects are moved on the stainless conveyor belt which speed can be addapted. The pressure in the nozzles is approximately 8 bar for 170 l/min.

Features and advantages of the device:

  • made from stainless steeel
  • stainless nozzle system
  • the module composition which can be extended
  • saves place, can be placed near wall
  • concentration of chemical solution, water pressure and temperature are adjustable, which helps to achieve the optimal cleaning program and the better crates purity
  • stable industrial design (apron thickness: 1,5mm)
  • easy accesibility for cleaning and maintenance
  • additional safety device for achieving better work safety (directional nozzles)
  • adjustable height for cleaning different types of EURO crates
  • regulation of water flow



TECHNICAL DATA OF FORCHEM MP 150

Teoretic power (pieces per hour)

150

Width (mm)

770

Lenght (mm)

1770

Height (mm)

1450

Input height (mm)

430

Dossage of cleaning solution (%)

0-5

Consumption of rinse water (l/h)

4-5

Tank capacity (l)

135

Voltage (V)

400

Tank temperature (°C)

20-60

Wattage (kW)

16
